WindTec

Climatic control series, also with built-in radio receiver.

Device suitable for Awnings, Screens, Pergolas

Equipped with the Cherubini remote control system

Ability to control the climate

Climatic control series, also with built-in radio receiver

The line of climatic control systems compatible with all our series of motors.

Practical

Adjustable bracket that can be mounted on a surface at any angle.

Reliability and safety

The high-performance "Rolling Code" decoder system works with a limited bandwidth and therefore avoids interference.

WINDTEC ANEMOMETER

A520039 WindTec white
A520041 WindTec anthracite

Wind sensor
Built-in radio receiver

No wiring between the motor and the control unit.
Threshold adjustment directly on the device.
Compatible with Wave RX, Senso RX, Ocean RX, Ora ZRX, Rebis ZRX motors and TDS Gold (A510020), TDS Compact (A510038) and Mini (A510036) radio receivers.

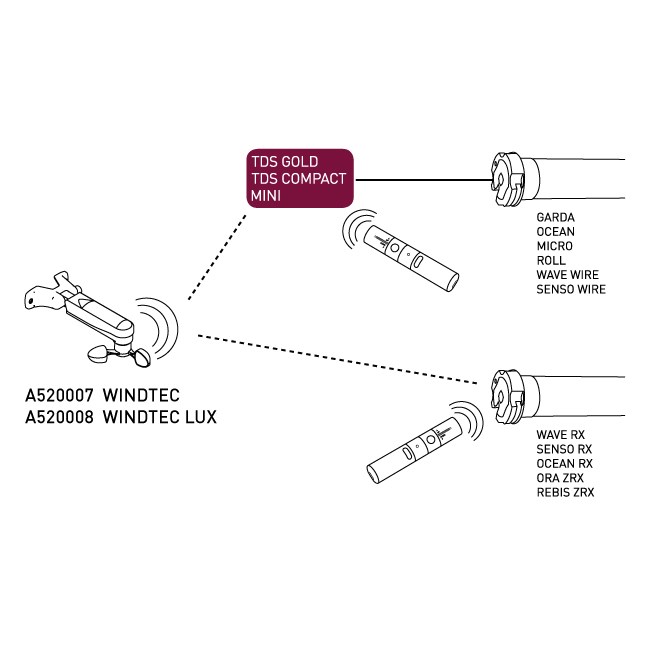

WINDTEC LUX ANEMOMETER

A520040 WindTec Lux white
A520042 WindTec Lux anthracite

Wind- & Sun sensor

The awning works automatically and is protected from the wind.

Built-in radio receiver

No wiring between the motor and the control unit.
Threshold adjustment directly on the device.
Compatible with Wave RX, Senso RX, Ocean RX, Ora ZRX, Rebis ZRX motors and TDS Gold (A510020), TDS Compact (A510038) and Mini (A510036) radio receivers.

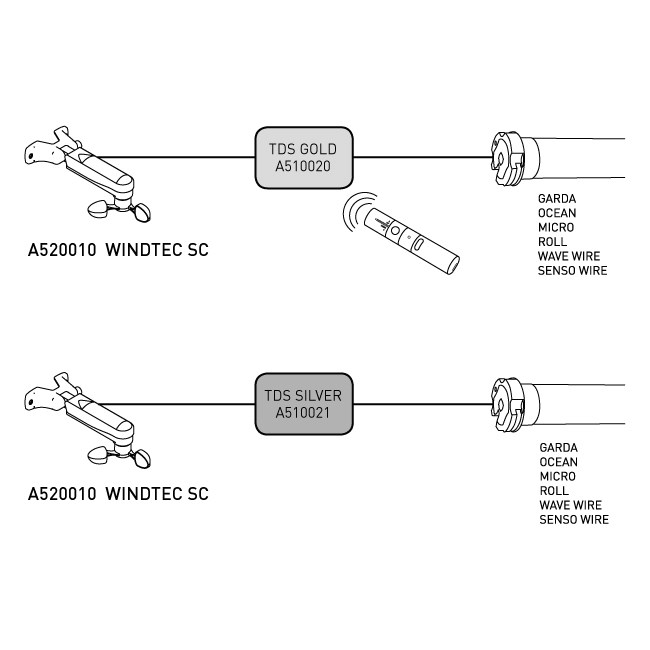

A520010 WINDTEC SC ANEMOMETER

Wind sensor

Direct connections through 2 wires.
Adjustment of the wind alarm threshold from the remote control.
Compatible with radio receiver TDS Gold (A510020) and control unit TDS Silver (A510021).

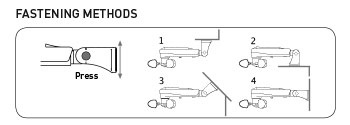

Windtec - Fastening

CREATE A PDF

Main characteristics

Code
{{ item["Codice"]}}

Technical features

Characteristics	{{prod.FeaturesProd.table_coppianm}}/{{prod.FeaturesProd.table_velocitarpm}} - {{prod.Codice}}

Academy Documentation

Wind and sun+wind weather control line compatible with all our motor series, whether wired or radio controlled. The anchor support can be adjusted for surfaces of any inclination. It is reliable and secure thanks to high-performing Rolling Code technology, which avoids interference.

WINDTEC and WINDTEC LUX

Before starting
Electrical Connection
Pairing of the sensor
Test Mode
WIND FUNCTION Test
Light function activation
Temporary disabling of the light function
Light function test
Activation of automatic reopening
Sensor Deleting

Instructions booklet Certifications
