FOR VENETIAN BLINDS

7006

Bevel gear.
Ratio 3:1

Device suitable for Venetian blinds

7006

FOR VENETIAN BLINDS

Bevel gear.
Ratio 3:1

  • Case in Zamak.
  • Conic mechanism in Zamak.
  • Steel spring brake.
  • Floating on ball in Nylon.
  • Right and left rotation.
  • Can be mounted beside the 57x51 and 58x56 headrail.
  • Can be mounted inside of the 58x56 headrail.

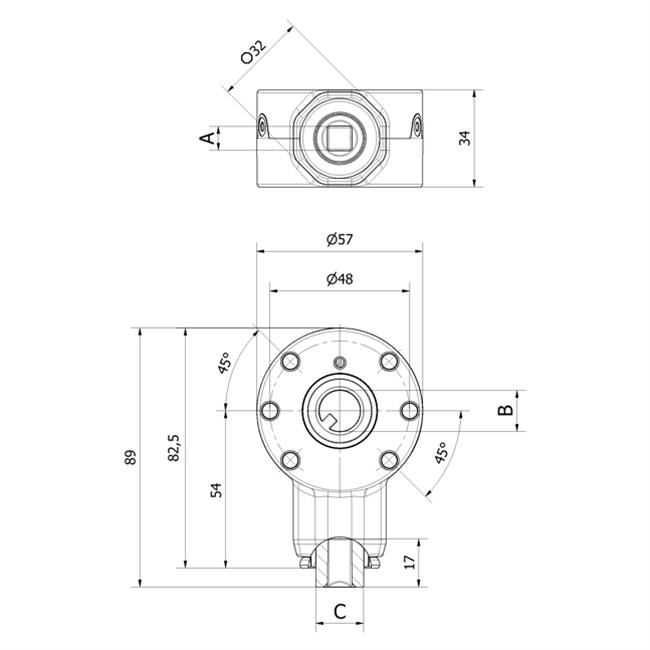

  • N°6 holes for fixing the gearbox with thread forming screws M6 DIN 7500, holes on pitch circle diameter 48 mm with angles 45°.
