FOR VENETIAN BLINDS

7160M

Tilter spring system brake.

Device suitable for Venetian blinds

7160M

You are in: Solutions / Manual / Tilters / 7160M

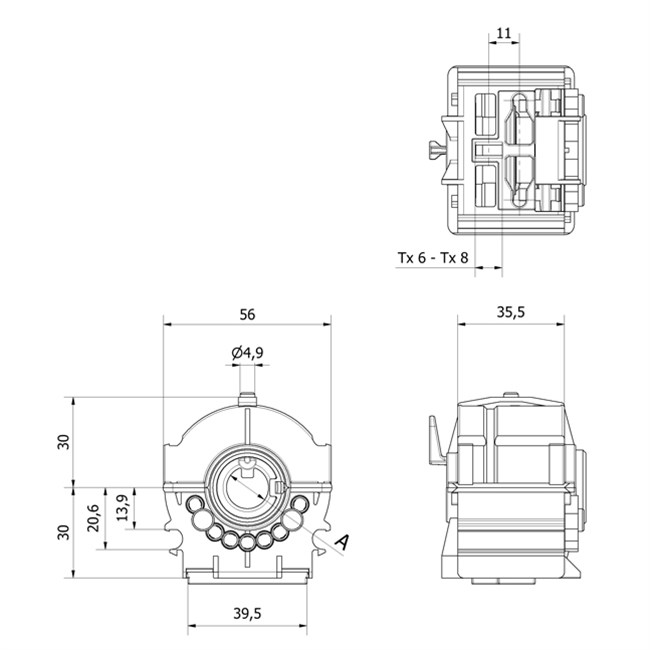

General features

FOR VENETIAN BLINDS

Tilter spring system brake

  • Fit for 57x51 and 58x56 mm headrail.
  • Fit for 6 mm or 8 mm lift tape.
  • With steel spring brake - Lockable slats position, perfect closing.
  • Mounting option on headrails with both upper and lower opening.
CREATE A PDF

Main characteristics

Code
Transmission axis (mm)
Tape (Texband) (mm)
Cord variant (mm)
Headrail (mm)
Slats: from-to (mm)
Maximum applicable weight
Case and cover colour
Brake
716001M
P14
68
30+158 / 120-120 / 150-150
57x51 / 58x56
50-90
40 N each tilt and raise mechanism
White
With spring
716003M
Q7
68
30+158 / 120-120 / 150-150
57x51 / 58x56
50-90
40 N each tilt and raise mechanism
White
With spring
716005M
Q12
68
30+158 / 120-120 / 150-150
57x51 / 58x56
50-90
40 N each tilt and raise mechanism
White
With spring
