FOR VENETIAN BLINDS, ROLLING SHUTTERS AND SCREENS

7741

Universal joint 70°. Nylon plate.

Device suitable for Venetian blinds, Rolling shutters, Screens

7741

You are in: Solutions / Manual / Universal joints with plate / 7741

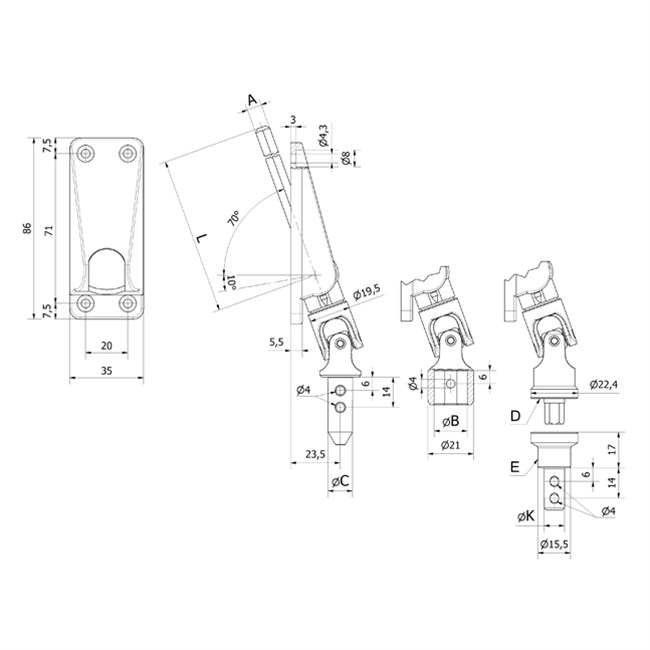

General features

FOR VENETIAN BLINDS, ROLLING SHUTTERS AND SCREENS

Universal joint 70°
Nylon plate

  • Plate in Nylon.
  • Universal joint in powder-coated Zamak.
  • Driving rod in zinc-plated steel.
  • Floating on POM bearings.
  • Rivets in stainless steel.

Fast-coupling modular system.

CREATE A PDF

Main characteristics

Code
Angle
Output (mm)
Drive (mm)
Plate size (mm)
Colour
Fixing holes
Plate material
Rod protrusion (mm)
Ø Universal joint (mm)
Plate
77415030CA05
70°
Q6
Magnetic male
35x86
RAL 7035
4
Plastic material
300
19
With plate
77415030F1505
70°
Q6
Female 15,5
35x86
RAL 7035
4
Plastic material
300
19
With plate
77415030F1516
70°
Q6
Female 15,5
35x86
RAL 9016
4
Plastic material
300
19
With plate
77415030M1216
70°
Q6
Male 12
35x86
RAL 9016
4
Plastic material
300
19
With plate
77416030F1505
70°
E6
Female 15,5
35x86
RAL 7035
4
Plastic material
300
19
With plate
77416030F1516
70°
E6
Female 15,5
35x86
RAL 9016
4
Plastic material
300
19
With plate
77416030M1216
70°
E6
Male 12
35x86
RAL 9016
4
Plastic material
300
19
With plate
77417030F1505
70°
E7
Female 15,5
35x86
RAL 7035
4
Plastic material
300
19
With plate
77417030F1516
70°
E7
Female 15,5
35x86
RAL 9016
4
Plastic material
300
19
With plate
77418025F1505
70°
Q8
Female 15,5
35x86
RAL 7035
4
Plastic material
250
19
With plate
77418025F1516
70°
Q8
Female 15,5
35x86
RAL 9016
4
Plastic material
250
19
With plate
77418025M1205
70°
Q8
Male 12
35x86
RAL 7035
4
Plastic material
250
19
With plate
77418025M1216
70°
Q8
Male 12
35x86
RAL 9016
4
Plastic material
250
19
With plate
77418040M1205
70°
Q8
Male 12
35x86
RAL 7035
4
Plastic material
400
19
With plate
77418040M1216
70°
Q8
Male 12
35x86
RAL 9016
4
Plastic material
400
19
With plate
77418040F1505
70°
Q8
Female 15,5
35x86
RAL 7035
4
Plastic material
400
19
With plate
77418040F1516
70°
Q8
Female 15,5
35x86
RAL 9016
4
Plastic material
400
19
With plate
77415030CA16
70°
Q6
Magnetic male
35x86
RAL 9016
4
Plastic material
300
19
With plate
