FOR VENETIAN BLINDS, ROLLING SHUTTERS AND SCREENS

7803CA

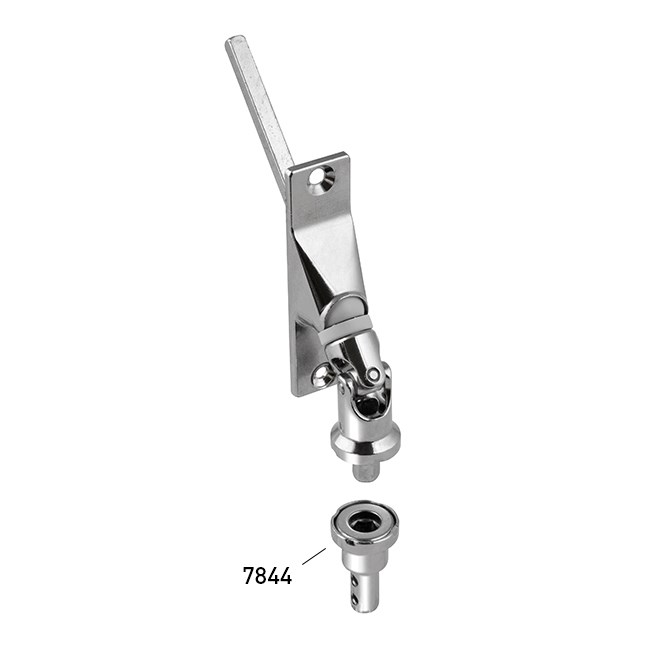

Magnetic universal joint 55°. Zamak plate 2 holes with lateral movement.

Device suitable for Venetian blinds, Rolling shutters, Screens

FOR VENETIAN BLINDS, ROLLING SHUTTERS AND SCREENS

Magnetic universal joint 55°
Zamak plate
2 holes with lateral movement

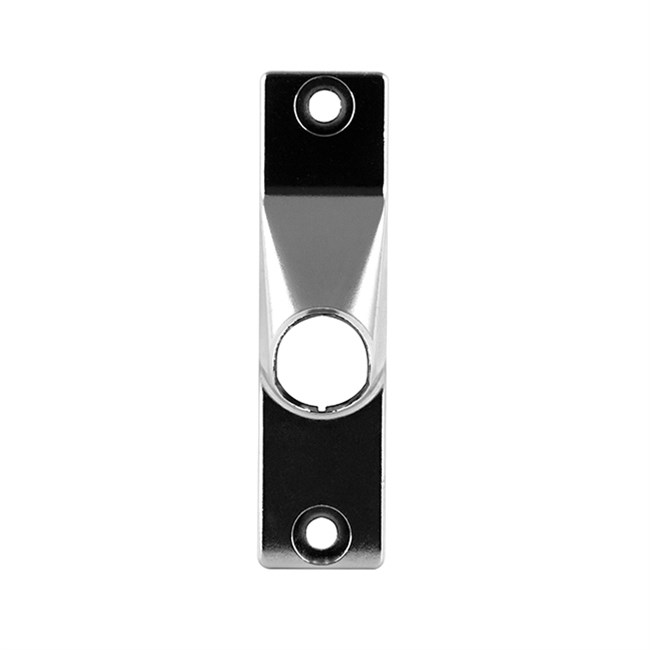

Plate in powder-coated or nickel-plated Zamak.
Universal joint in powder-coated or nickel-plated Zamak.
Nickel-plated, magnetic tube adapter.
Driving rod in zinc-plated steel.
Floating on POM bearings.
Rivets in stainless steel.

CREATE A PDF

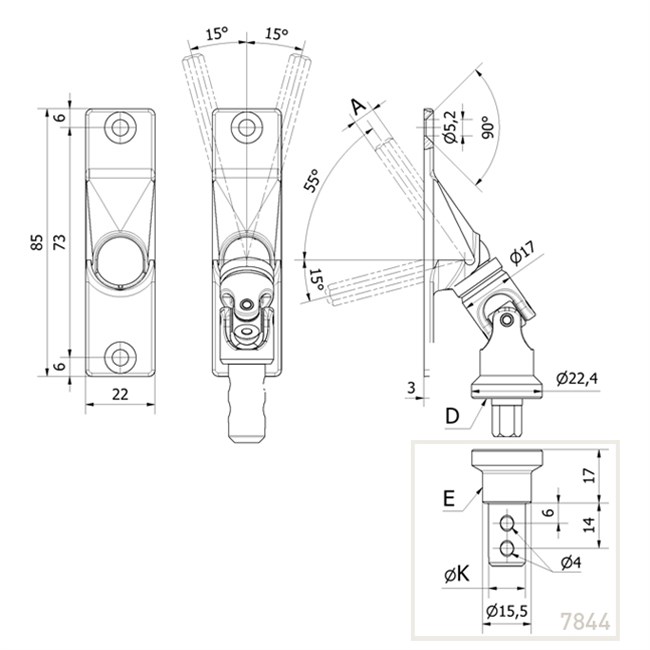

Main characteristics

Code	Angle	Output (mm)	Drive (mm)	Plate size (mm)	Colour	Fixing holes	Plate material	Rod protrusion (mm)	Ø Universal joint (mm)	Plate
78035000CANK	55°	Q6	Magnetic male	22x85	Nickel plated	2	Zama	Without rod	17	With plate
78035000CA05	55°	Q6	Magnetic male	22x85	RAL 7035	2	Zama	Without rod	17	With plate
78035000CA16	55°	Q6	Magnetic male	22x85	RAL 9016	2	Zama	Without rod	17	With plate
78036000CANK	55°	E6	Magnetic male	22x85	Nickel plated	2	Zama	Without rod	17	With plate
78036000CA05	55°	E6	Magnetic male	22x85	RAL 7035	2	Zama	Without rod	17	With plate
78036000CA16	55°	E6	Magnetic male	22x85	RAL 9016	2	Zama	Without rod	17	With plate
78037000CANK	55°	E7	Magnetic male	22x85	Nickel plated	2	Zama	Without rod	17	With plate
