MOTORS FOR AWNINGS, PERGOLAS AND SCREENS

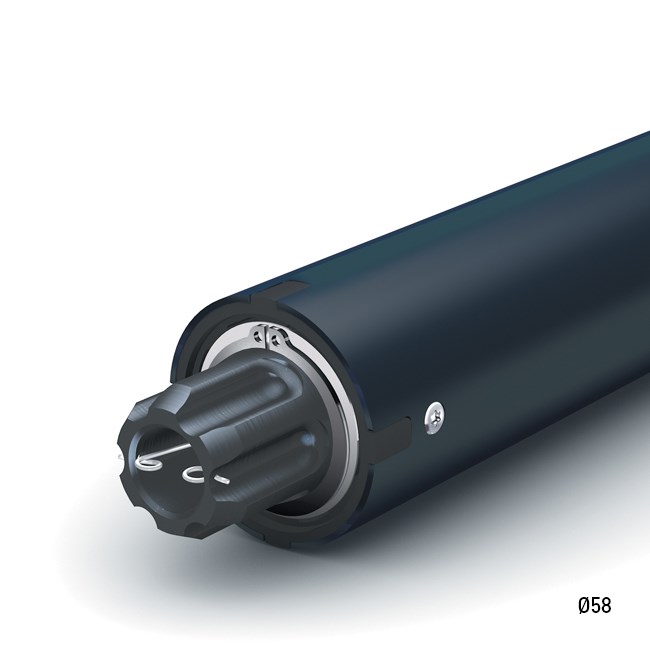

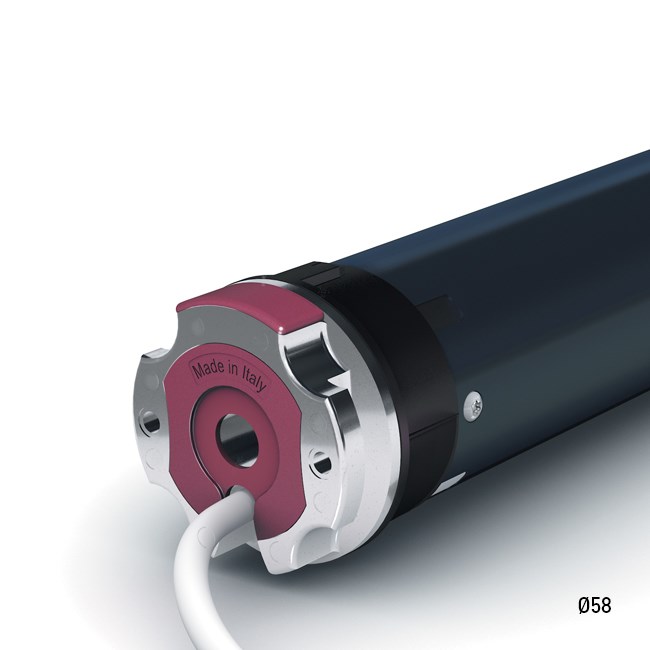

Wave RX

The motor for all awning types - Ideal for cassette awnings, pitched pergolas or horizontal awnings.

Activation by remote control or switch. Electronic limit switch.

Configure the product

Device suitable for Awnings, Screens, Pergolas

Equipped with the Cherubini remote control system

The motor for all awning types

MOTORS FOR AWNINGS, PERGOLAS AND SCREENS

Electronic limit switch with built-in receiver, wire and radio control

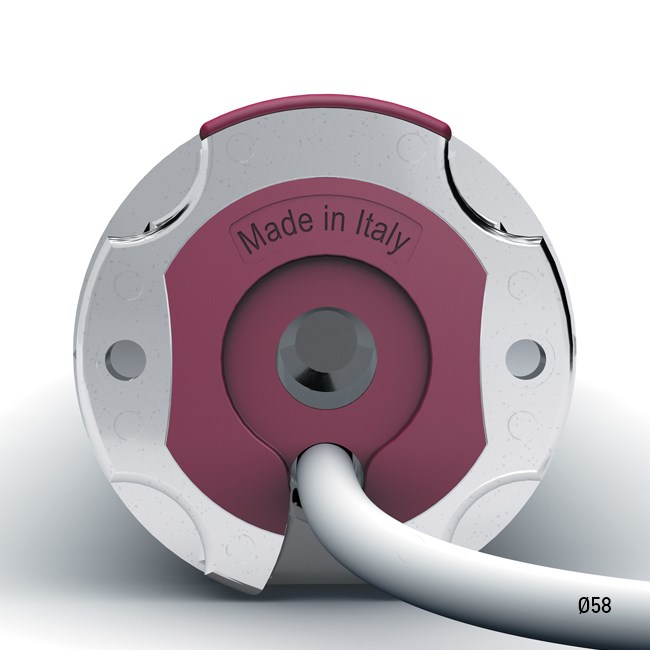

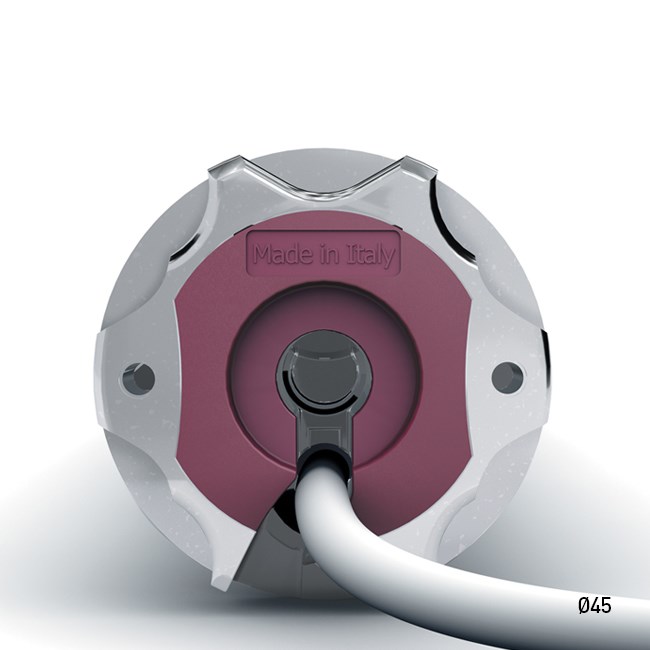

Attachment without brackets

Thanks to the metallic head, the motor can be fastened directly to the bracket.

Specific functions:

"Super-sensitivity" function on obstacle detection, set by remote control, setting on 3 levels possible (only for 10-15-25 Nm).
Obstacle detection up-wards, sensitivity setting on 3 levels possible.
Torque control for the stop in closing position of cassette awnings.
Possibility of memorising an intermediate position.
Setting possible with remote control or wired switch.

Cassette awnings

The possibility to adjust the applied force ensures the perfect closing of the cassette awnings, avoids the danger of over-stretching the awning fabric.

Pitched pergolas

On pitched pergolas the motor stops automatically when the fabric reaches its point of greatest extension: performing a remote control sequence is sufficient to program the limit switches. From that moment onwards each time the motor reaches the opening limit switch position, it stops so that it keeps the awning fabric taut.

Pergolas and horizontal awnings

For pergolas and horizontal awnings it is possible to activate the Fabric Tightening function: the motor, after reaching the outer limit, automatically performs a short backwards turn to tighten the fabric.

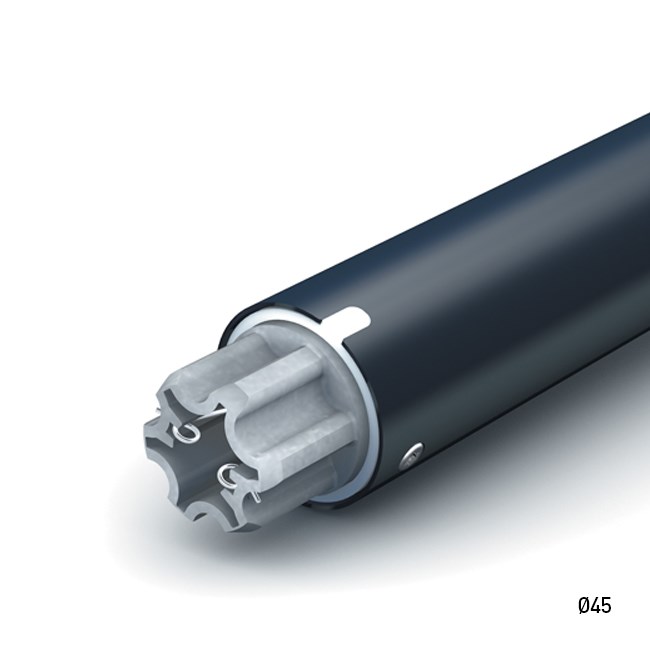

Wave RX Ø 45 4 rpm: the ideal for tilt slats pergolas

The “slow” version (4 rpm) was designed to automate tilt slats pergolas. The high-resolution electronic control of the revolutions enables fine tuning of the slats’ angular position ensuring precise light management. The electronic limit switch managed by the remote control makes the motor extremely flexible and adaptable to every situation.

Optional connections

Wired switch.
Connection to WindTec, Mistral and Rugiada climatic controls via radio.

CREATE A PDF

Main characteristics

Code	Output torque (Nm)	Diameter	Fast motors	Head	Speed (rpm)	Power supply (V/Hz)
CET45101700	10	45		Zama	17	230/50
CET45102000	10	45		Zama	20	120/60
CET45151700	15	45		Zama	17	230/50
CET45152000	15	45		Zama	20	120/60
CET45251700	25	45		Zama	17	230/50
CET45321700	32	45		Zama	17	230/50
CET45322000	32	45		Zama	20	120/60
CET45400400	40	45		Zama	4	230/50
CET45401400	40	45		Zama	14	120/60
CET45401700	40	45		Zama	17	230/50
CET45501200	50	45		Zama	12	230/50
CET45501400	50	45		Zama	14	120/60
CET58027500	20	58	X	Zama	75	230/50
CET58043200	40	58	X	Zama	32	230/50
CET58061400	60	58		Zama	14	120/60
CET58061700	65	58		Zama	17	230/50
CET58081400	80	58		Zama	14	120/60
CET58081700	85	58		Zama	17	230/50
CET58101100	100	58		Zama	11	230/50
CET58121100	120	58		Zama	11	230/50

Technical features

Characteristics	10/17 - CET45101700	10/20 - CET45102000	15/17 - CET45151700	15/20 - CET45152000	25/17 - CET45251700	32/17 - CET45321700	32/20 - CET45322000	40/4 - CET45400400	40/14 - CET45401400	40/17 - CET45401700	50/12 - CET45501200	50/14 - CET45501400	20/75 - CET58027500	40/32 - CET58043200	60/14 - CET58061400	65/17 - CET58061700	80/14 - CET58081400	85/17 - CET58081700	100/11 - CET58101100	120/11 - CET58121100
Motor torque (Nm)	10	10	15	15	25	32	32	40	40	40	50	50	20	40	60	65	80	85	100	120
Speed	17 rpm	20 rpm	17 rpm	20 rpm	17 rpm	17 rpm	20 rpm	4 rpm	14 rpm	17 rpm	12 rpm	14 rpm	75 rpm	32 rpm	14 rpm	17 rpm	14 rpm	17 rpm	11 rpm	11 rpm
Power (W)	135	175	170	190	225	250	250	215	250	275	275	250	415	360	310	330	380	375	360	415
Stand-by (W)	0,49	0,35	0,49	0,35	0,49	0,49	0,35	0,49	0,35	0,49	0,49	0,35	0,49	0,49	1,9	0,49	1,9	0,49	0,49	0,49
Radio frequency (MHz)	433,92	433,92	433,92	433,92	433,92	433,92	433,92	433,92	433,92	433,92	433,92	433,92	433,92	433,92	433,92	433,92	433,92	433,92	433,92	433,92
Consumption (A)	0,6	1,5	0,8	1,65	1	1,1	2,1	0,9	2,1	1,25	1,25	2,1	1,9	1,6	2,6	1,5	3,2	1,7	1,6	1,9
Cable 4 x 0,75 (m)	5	3	5	3	5	5	3	5	3	5	5	3	4,5	4,5	3	4,5	3	4,5	4,5	4,5
Operating time (min)	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4
Protection degree	IP44	IP44	IP44	IP44	IP44	IP44	IP44	IP44	IP44	IP44	IP44	IP44	IP44	IP44	IP44	IP44	IP44	IP44	IP44	IP44
Receiver storage capacity (No. Remote controls)	15	15	15	15	15	15	15	15	15	15	15	15	15	15	15	15	15	15	15	15
Weight (kg)	3	3,1	3,1	3,1	3,6	3,6	3,6	3,4	3,6	3,6	3,6	3,6	6	6	6	6	6	6	6	6
L1 (mm)	488	503	503	503	543	543	543	525	543	543	543	543	646	646	700	646	700	646	646	646

Compatible automatisms

Remote controls

Climatic controls

Serie GIRO

Serie POP

GIRO WALL

Skipper Senso

Skipper LCD

TOUCH Remote control

Pocket remote control

Show all

Show less

Mistral

WindTec

Rugiada

Academy Documentation

Perfect for awnings with or without cassette and fold-up or roll-up pergola shades; it is operated via remote control or switch. Thanks to the metal head, the motor can be attached directly to the bracket.

WAVE RX - Awnings

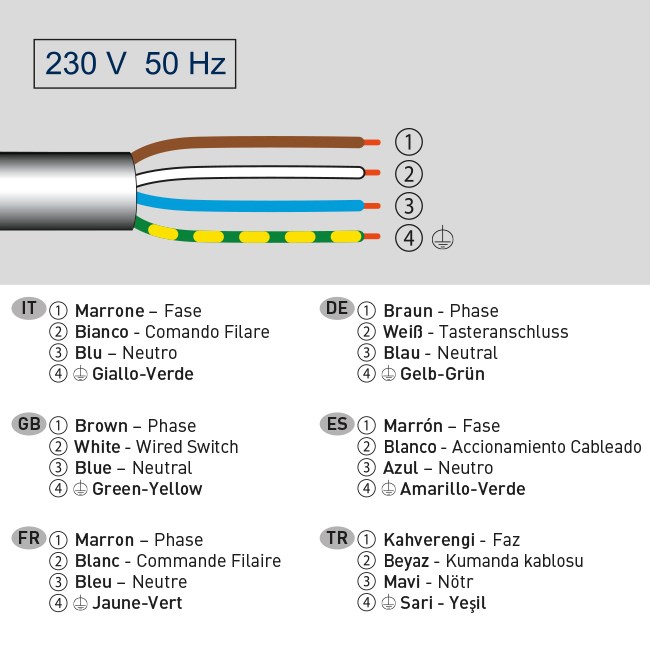

Electrical Connection
Before starting
Motor programming
Pairing the remote control with the motor
Setting the limit stop position
Anemometer, Storage of climate sensors
Intermediate position
Pairing additional remote controls
Complete deletion of remote controls
Complete deletion of limit positions
Closing force setting

Instructions booklet Certifications

METAHome: Inclusion of the Cherubini CRC RX motors in the META App

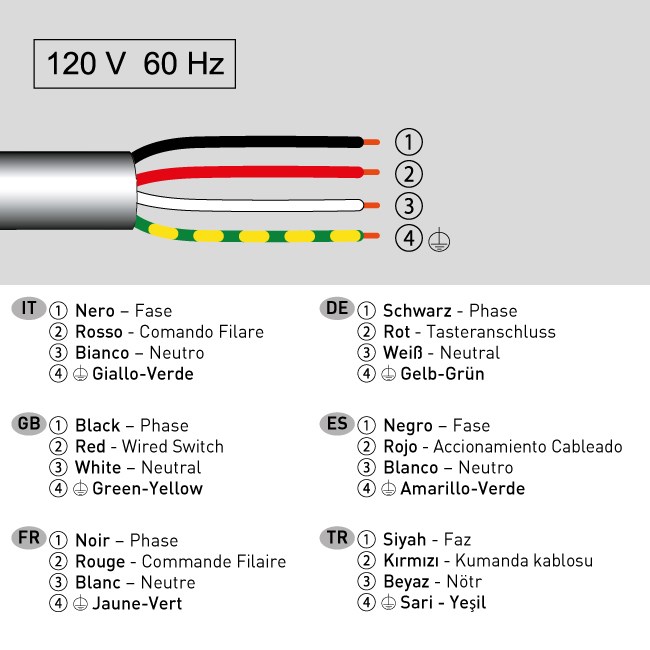

For 120 V - 60 Hz cabling, see also the following file: ELECTRICAL CONNECTION - STANDARD 120 V - 60 Hz

WAVE RX 120V 60HZ - Awnings

Electrical Connection
Before starting
Motor programming
Pairing the remote control with the motor
Setting the limit stop position
Anemometer, Storage of climate sensors
Intermediate position
Pairing additional remote controls
Complete deletion of remote controls
Complete deletion of limit positions
Closing force setting

Instructions booklet

METAHome: Inclusion of the Cherubini CRC RX motors in the META App

Perfect for fold-up or roll-up pergola shades; it is operated with via remote control or switch. Thanks to the metal head, the motor can be attached directly to the rod bracket.

WAVE RX - Pergolas

Electrical Connection
Before starting
Motor programming
Pairing the remote control with the motor
Setting the limit stop position
Anemometer, Storage of climate sensors
Intermediate position
Pairing additional remote controls
Complete deletion of remote controls
Complete deletion of limit positions
Closing force setting

Instructions booklet Certifications

METAHome: Inclusion of the Cherubini CRC RX motors in the META App
