MOTORS FOR ROLLING SHUTTERS AND SCREENS

Plug&Play Plus

More than a motor, a system!

Activation by switch. Electronic limit switch.

Device suitable for Rolling shutters, Screens

More than a motor, a system!

MOTORS FOR ROLLING SHUTTERS AND SCREENS

Electronic limit switch, wire control and encoder

This motor is recommended as drive system for interior and exterior "monobloc" shutters, roller blinds and screens.

Easy to install

Insert the motor into the tube, connect it to the power supply and it's ready.

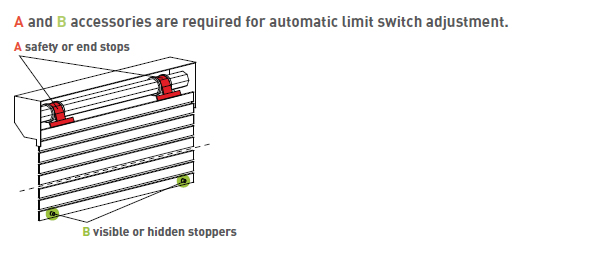

When using mechanical stops no adjustment required.

Versatile

Without lockers components upwards or downwards, one or both limit switches may be set on the external button panel.
DEDICATED BUTTON PANEL NOT REQUIRED!

Protection against freezing

The motor will not operate if the guides and/or slats are frozen.

Specific functions

  • Automatic or manual adjustment of the limit switch.
  • Obstacle recognition either upwards or downwards, with drive inversion (Ø 35) or with stop and reverse relaxation movement (Ø45).
  • Periodic relaxation movement on stop (Ø45).
  • May be connected either directly or in parallel.



PPPlus_ENG_600x270

Main characteristics

Code
{{ item["Codice"]}}
certification: {{itemKeyItem | translate }}

Technical features

Characteristics
{{prod.FeaturesProd.table_coppianm}}/{{prod.FeaturesProd.table_velocitarpm}} - {{prod.Codice}}

Academy Documentation

It's easy to install: insert it in the tube, connect it to the power supply and it’s ready to go. The limit switches adjust automatically thanks to the use of mechanical stops. However, it is still possible to set just one or both limit switches manually using the external button panel.

PLUG&PLAY PLUS Ø 45 - Rolling shutters and Screens

It's easy to install: insert it in the tube, connect it to the power supply and it’s ready to go. The limit switches adjust automatically thanks to the use of mechanical stops. However, it is still possible to set just one or both limit switches manually using the external button panel.

PLUG&PLAY PLUS Ø 35 - Rolling shutters and screens
  • Electrical Connection
  • Before starting
  • Motor programming
  • Setting the limit stop position
  • Deleting the limit position
  • Complete deletion of limit positions
  • Reset to factory settings
