MOTORS FOR SCREENS

Senso Wire

The Plug&Play for screens, with encoder.

Activation by switch. Electronic limit switch.

Configure the product

Device suitable for Screens

Ideal for screens and mosquito nets

MOTORS FOR SCREENS

Electronic limit switch, wire control and encoder

Easy to install,
easy to program!

Adjustment of the limit switches through control panel

No need to access the motor head.
DEDICATED BUTTON PANEL NOT REQUIRED!

Specific functions

"Super-sensitivity" function on obstacle detection, setting on 3 levels possible.
May be connected either directly or in parallel.

CREATE A PDF

Main characteristics

Code	Output torque (Nm)	Diameter	Fast motors	Head	Speed (rpm)	Power supply (V/Hz)
CEG35053000	5	35	X	Plastic material	30	230/50
CEG35091600	9	35		Plastic material	16	230/50
CEG45073000	7	45	X	Plastic material	30	230/50
CEG45101700	10	45		Plastic material	17	230/50
CEG45151700	15	45		Plastic material	17	230/50
CEG45153000	15	45	X	Plastic material	30	230/50
CEG45251700	25	45		Plastic material	17	230/50

Technical features

Characteristics	5/30 - CEG35053000	9/16 - CEG35091600	7/30 - CEG45073000	10/17 - CEG45101700	15/17 - CEG45151700	15/30 - CEG45153000	25/17 - CEG45251700
Motor torque (Nm)	5	9	7	10	15	15	25
Speed	30 rpm	16 rpm	30 rpm	17 rpm	17 rpm	30 rpm	17 rpm
Power (W)	130	130	170	135	170	225	225
Stand-by (W)	0,45	0,45	0,46	0,46	0,46	0,46	0,46
Consumption (A)	0,6	0,6	0,8	0,6	0,8	1	1
Cable 4 x 0,75 (m)	3	3	3	3	3	3	3
Operating time (min)	4	4	4	4	4	4	4
Protection degree	IP44	IP44	IP44	IP44	IP44	IP44	IP44
Weight (kg)	1,7	1,7	2,5	2,4	2,5	3,2	3,2

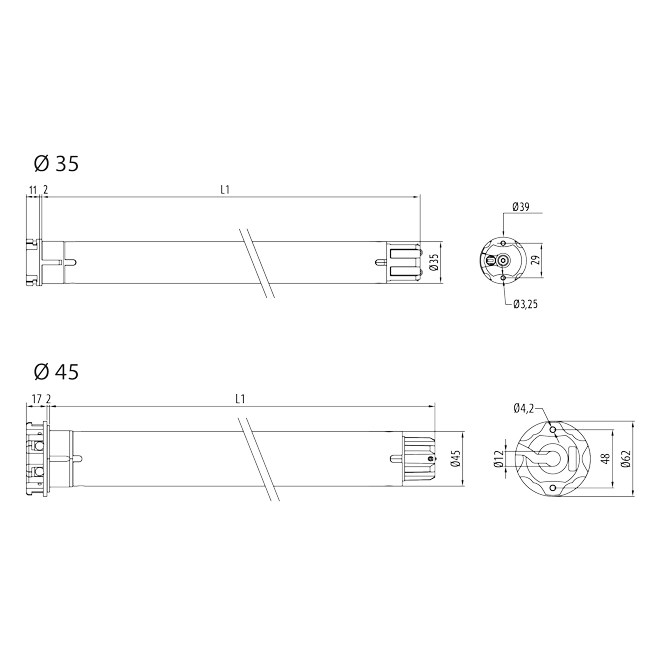

L1 (mm)	547	547	503	488	503	543	543

Compatible automatisms

Remote controls

Climatic controls

Control units and receivers

Serie GIRO

Serie POP

GIRO WALL

Skipper Senso

Skipper LCD

Mistral

WindTec

Rugiada

Mini

TDS Silver

Academy Documentation

Super-Sensibilität Funktion bei der Hinderniserkennung (nach unten), Einstellung auf 3 Stufen möglich. Kann entweder direkt oder parallel angeschlossen werden.

SENSO WIRE - Technical Blinds and Screens

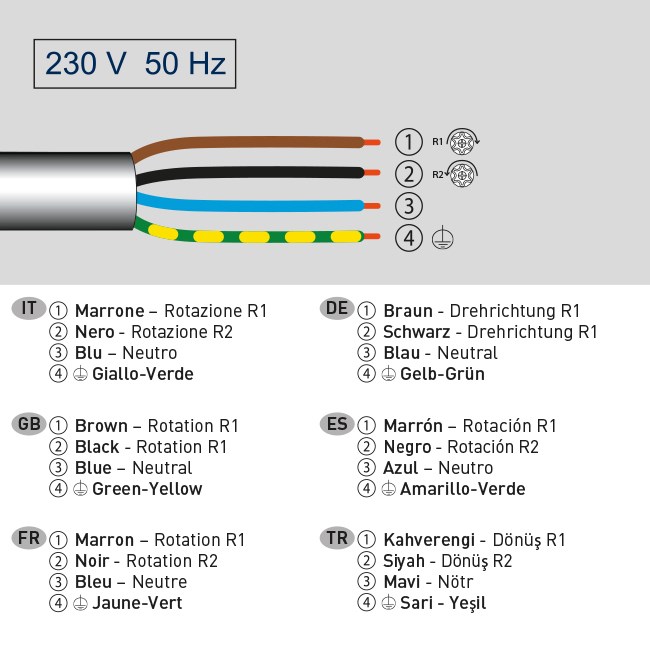

Electrical Connection
Before starting
Motor programming
Setting the limit stop position
Deleting the limit position
Complete deletion of limit positions
Supersensitivity activation
Supersensitivity deactivation
Restoring the original configuration

Instructions booklet
