Wave Lock RX

The ideal motor for pergola awnings with automatic coupling.

Activation by remote control or switch. Electronic limit switch.

Device suitable for Awnings, Screens, Pergolas

Equipped with the Cherubini remote control system

The ideal motor for pergola awnings with automatic coupling


Electronic limit switch with built-in receiver, wire and radio control

Wave Lock RX was created to be adapted with great flexibility to all horizontal or vertical awnings equipped with automatic coupling.
Electronic programming of the coupling excursion and stretching force ensures consistent operation over time.

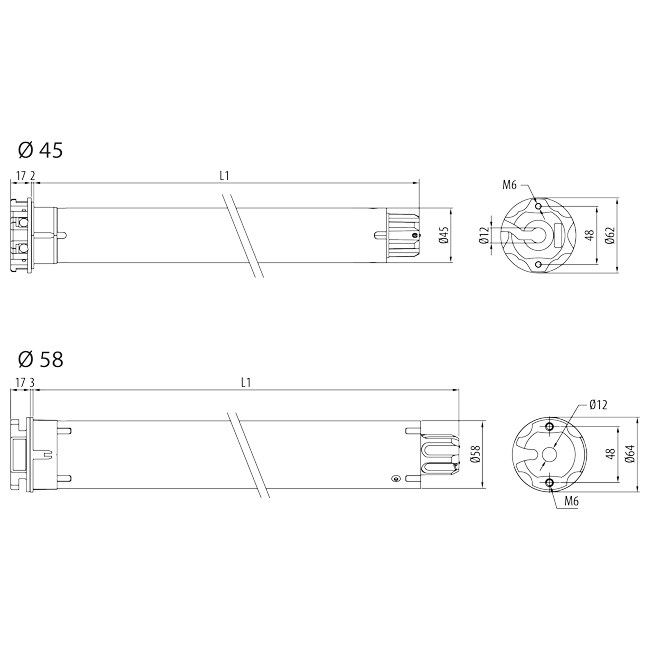

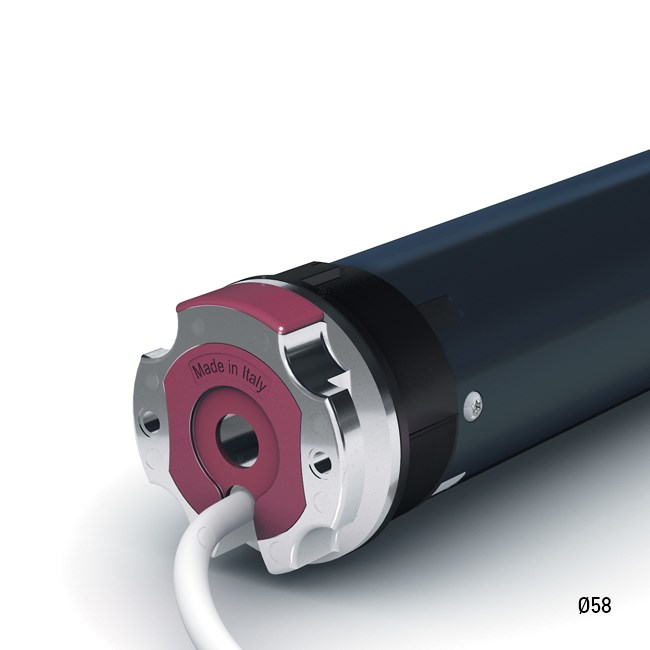

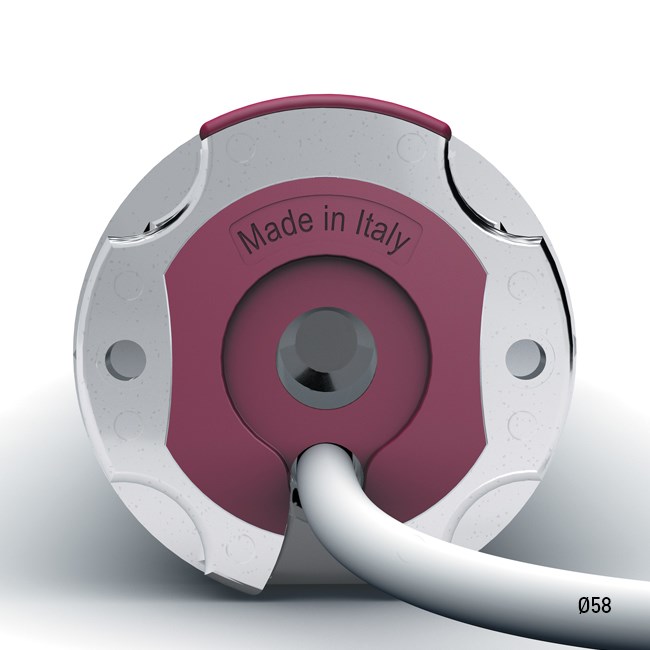

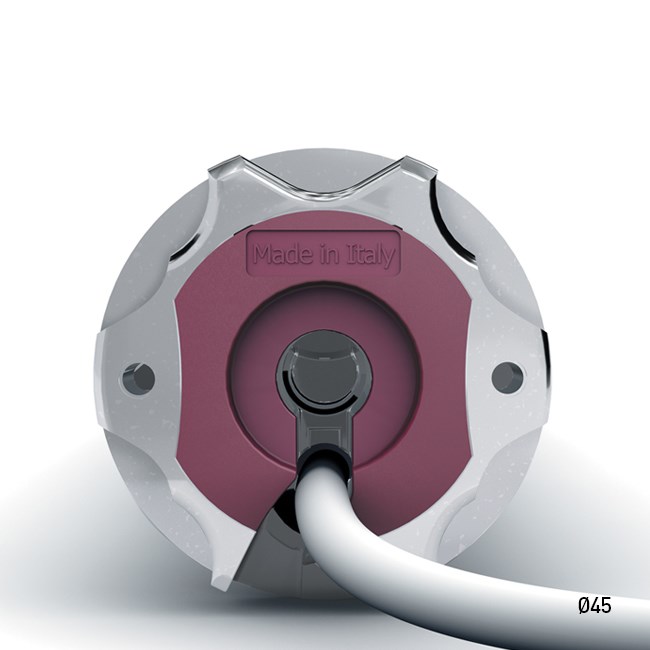

Attachment without brackets

Thanks to the metallic head, the motor can be fastened directly to the bracket.

Specific functions

  • "Super-sensitivity" function on obstacle detection, set by remote control, setting on 3 levels possible (only for 15-25 Nm).
  • Obstacle detection up-wards, sensitivity setting on 3 levels possible.
  • Automatic programmable awning coupling and uncoupling system.
  • Possibility of memorising the automatic coupling and uncoupling of the awning even in the intermediate position.
  • Torque control for the stop in closing position of cassette awnings.
  • Setting possible with remote control or wired switch.

Optional connections

Wired switch.
Connection to WindTec, Mistral and Rugiada climatic controls via radio.

Wave Lock RX

Main characteristics

{{ item["Codice"]}}
certification: {{itemKeyItem | translate }}

Technical features

{{prod.FeaturesProd.table_coppianm}}/{{prod.FeaturesProd.table_velocitarpm}} - {{prod.Codice}}

Academy Documentation

Specific for vertical awnings with automatic coupling, it is convenient and easy to install thanks to the possibility to program it from the remote control or using the button panel.

WAVE LOCK RX - Vertical awnings with automatic coupling

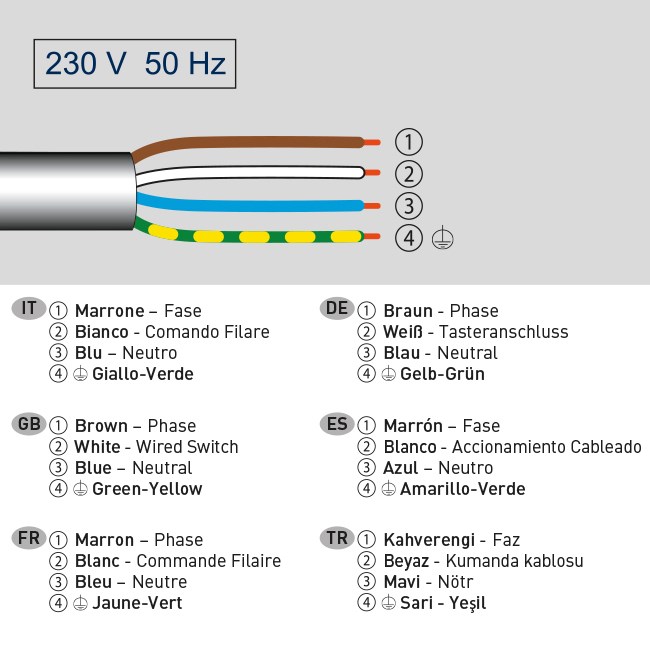

  • Electrical Connection
  • Before starting
  • Motor programming
  • Pairing the remote control with the motor
  • Setting the limit stop position
  • Anemometer, Storage of climate sensors
  • Intermediate position
  • Pairing additional remote controls
  • Complete deletion of remote controls
  • Complete deletion of limit positions
  • Closing force setting

METAHome: Inclusion of the Cherubini CRC RX motors in the META App
