MOTORS FOR ROLLING SHUTTERS AND SCREENS

Roll

The ideal motor for the installation of rolling shutters, screens and technical blinds.

Activation by switch. Mechanical limit switch.

Device suitable for Rolling shutters, Screens

The ideal motor for the installation of rolling shutters, screens and technical blinds.

MOTORS FOR ROLLING SHUTTERS AND SCREENS

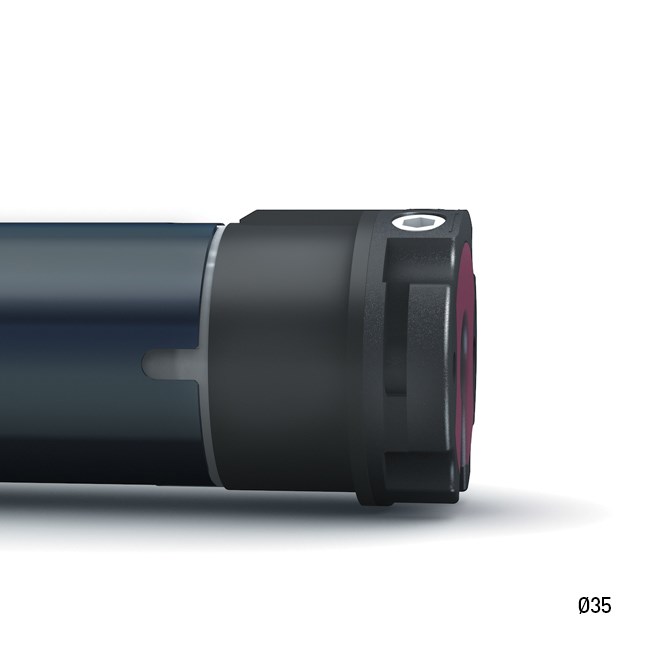

Mechanical limit switch

Reliable and easy adjustment of the limit switches.
Fixed limit switch position.

Strength and safety

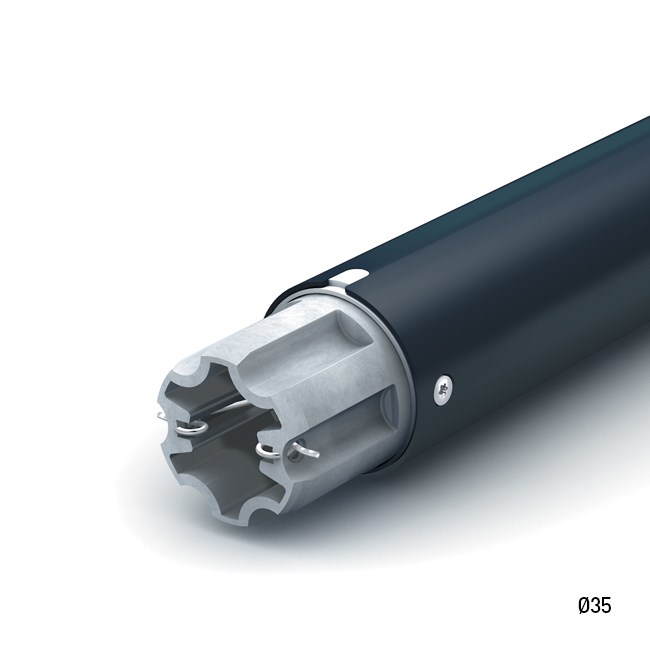

The star-shaped reducer pin makes the motor highly reliable.

Main characteristics

Code
Output torque (Nm)
Diameter
Fast motors

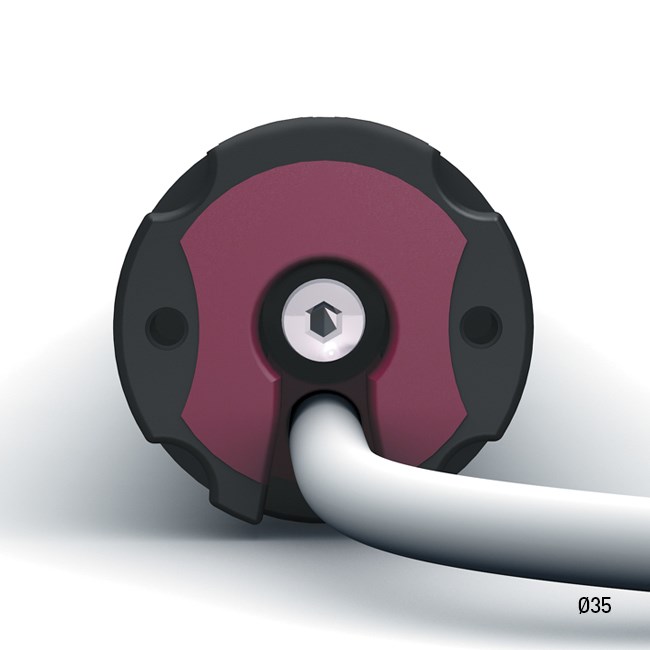

Head
Speed (rpm)
Power supply (V/Hz)
Certification
CMP35033000
3
35
X
Plastic material
30
230/50
certification: {{itemKeyItem | translate }}
CMP35052100
5
35
Plastic material
21
230/50
certification: {{itemKeyItem | translate }}
CMP35053000
5
35
X
Plastic material
30
230/50
certification: {{itemKeyItem | translate }}
CMP35091600
9
35
Plastic material
16
230/50
certification: {{itemKeyItem | translate }}
CMP35131000
13
35
Plastic material
10
230/50
certification: {{itemKeyItem | translate }}

Technical features

Characteristics
3/30 - CMP35033000
5/21 - CMP35052100
5/30 - CMP35053000
9/16 - CMP35091600
13/10 - CMP35131000
Motor torque (Nm)
3
5
5
9
13
Speed
30 rpm
21 rpm
30 rpm
16 rpm
10 rpm
Mechanical limit switch
32
32
32
32
32
Power (W)
105
105
130
120
120
Stand-by (W)
0
0
0
0
0
Consumption (A)
0,4
0,4
0,6
0,6
0,6
Cable 4 x 0,75 (m)
2,5
2,5
2,5
2,5
2,5
Operating time (min)
4
4
4
4
4
Protection degree
IP44
IP44
IP44
IP44
IP44
Weight (kg)
1,6
1,6
1,6
1,6
1,6

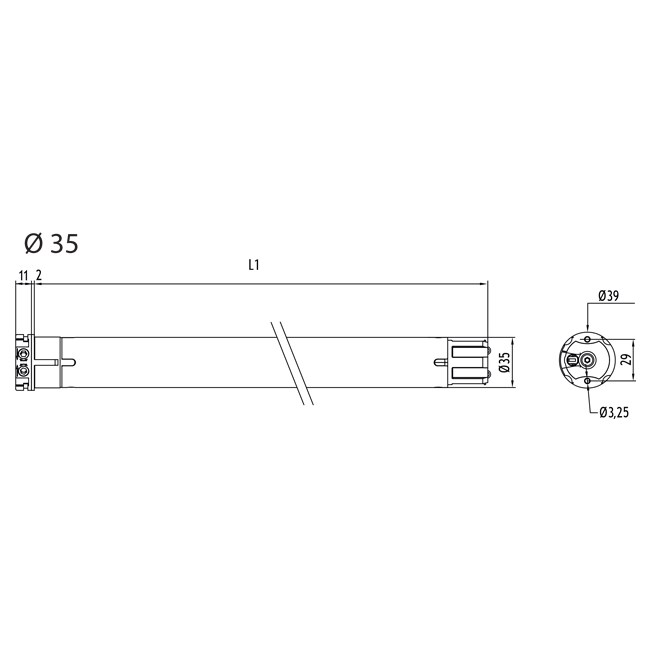

L1 (mm)
477
477
477
477
477
